Rotary Actuator

First create a crank-rocker four-bar mechanism as in Making Your First Mechanism. Then continue by opening the Rotary Actuator Chart and following the animation as below. Make sure to click on the rotary actuator symbol in the mechanism before editing its speed.

rotary-actuator

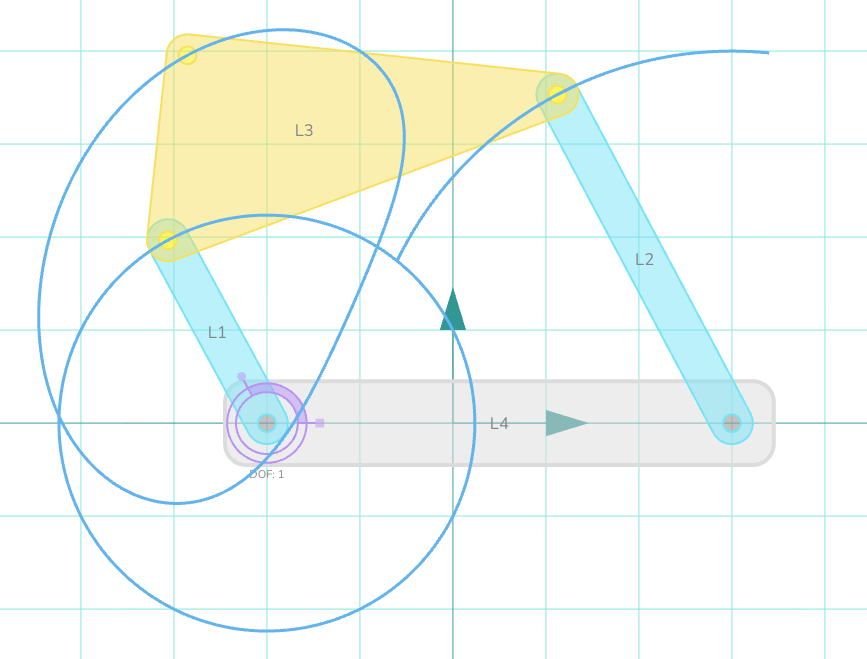

The rotary actuator symbol is shown in the purple
