Link Graph

First create a crank-rocker mechanism as in Making Your First Mechanism. Then continue as below.

Open the Link Graph panel and select the coupler link of interest. The link graph highlights the selected link and shows the displacement, velocity, and acceleration of that link in angular units.

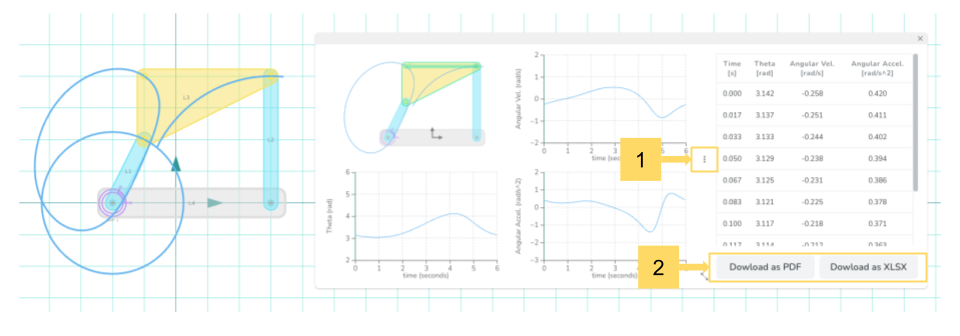

The Crank-Rocker Mechanism - Coupler Link Graph: Click on the three dots on the right side of this window to see the numerical data, which can be exported.
